Like most Pinnacle roofing projects, the work was completed in a single day — minimizing disruption for the homeowner.
Pinnacle makes every roof affordable with monthly financing options, including 0% interest for 18 months.

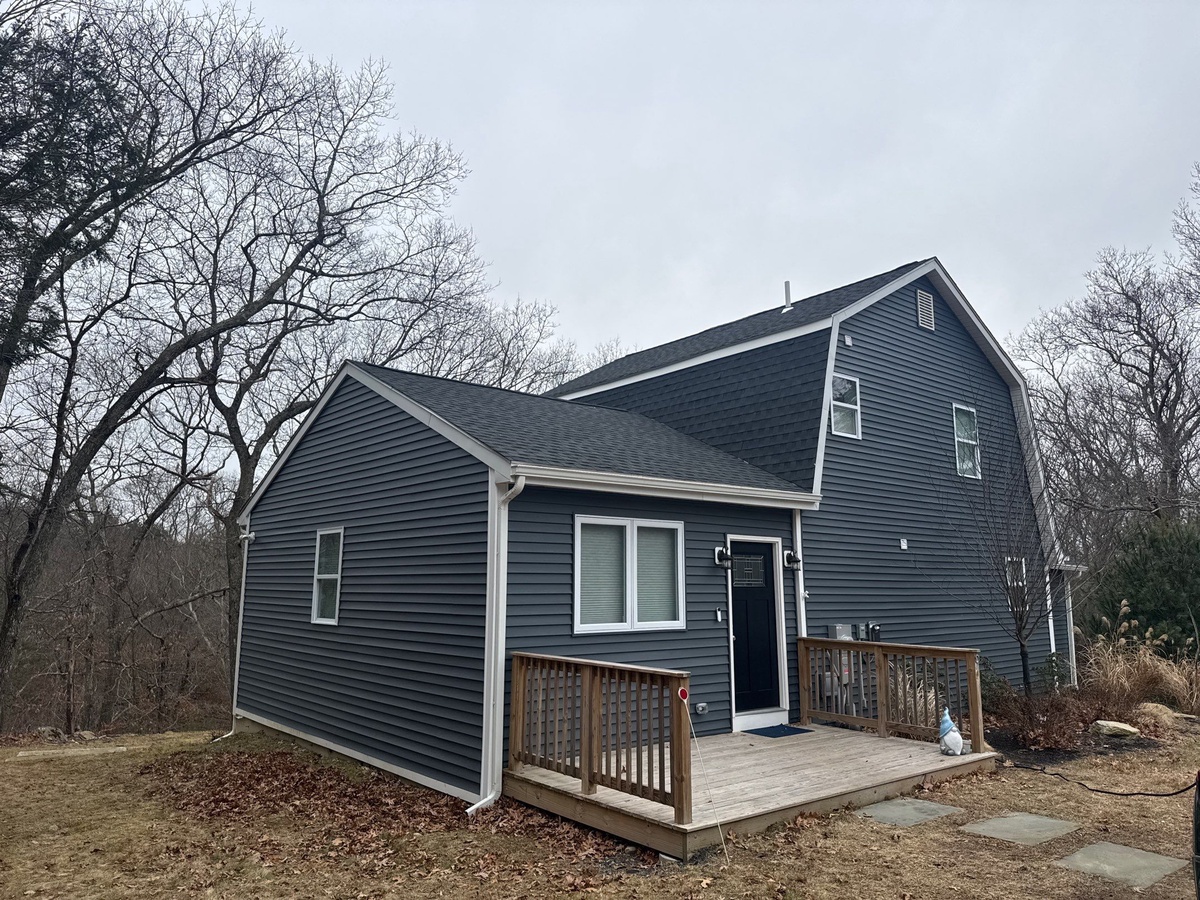

When a homeowner on Elmgrove Avenue in Johnston called Pinnacle Roofing about water pouring into their living room during every rainstorm, the source of the problem wasn’t a worn-out roof — it was a previous contractor’s decision to install vinyl siding on a sloped roof section where a home addition met the original structure. Vinyl siding is engineered for vertical walls and has no business on any pitched surface. As Rhode Island’s A+ BBB-rated roofing contractor, Pinnacle was called in to make this right — permanently.
Scope of Work

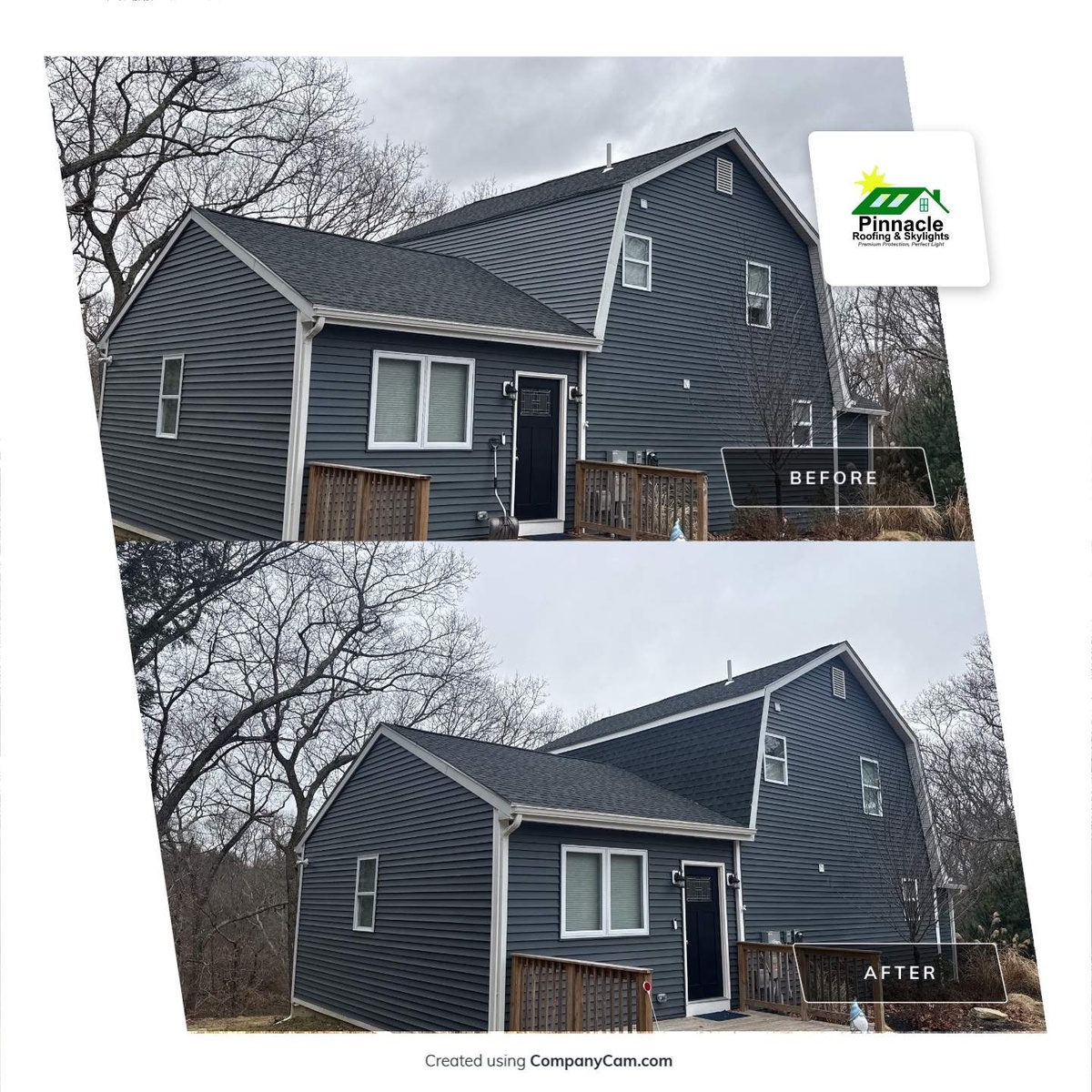

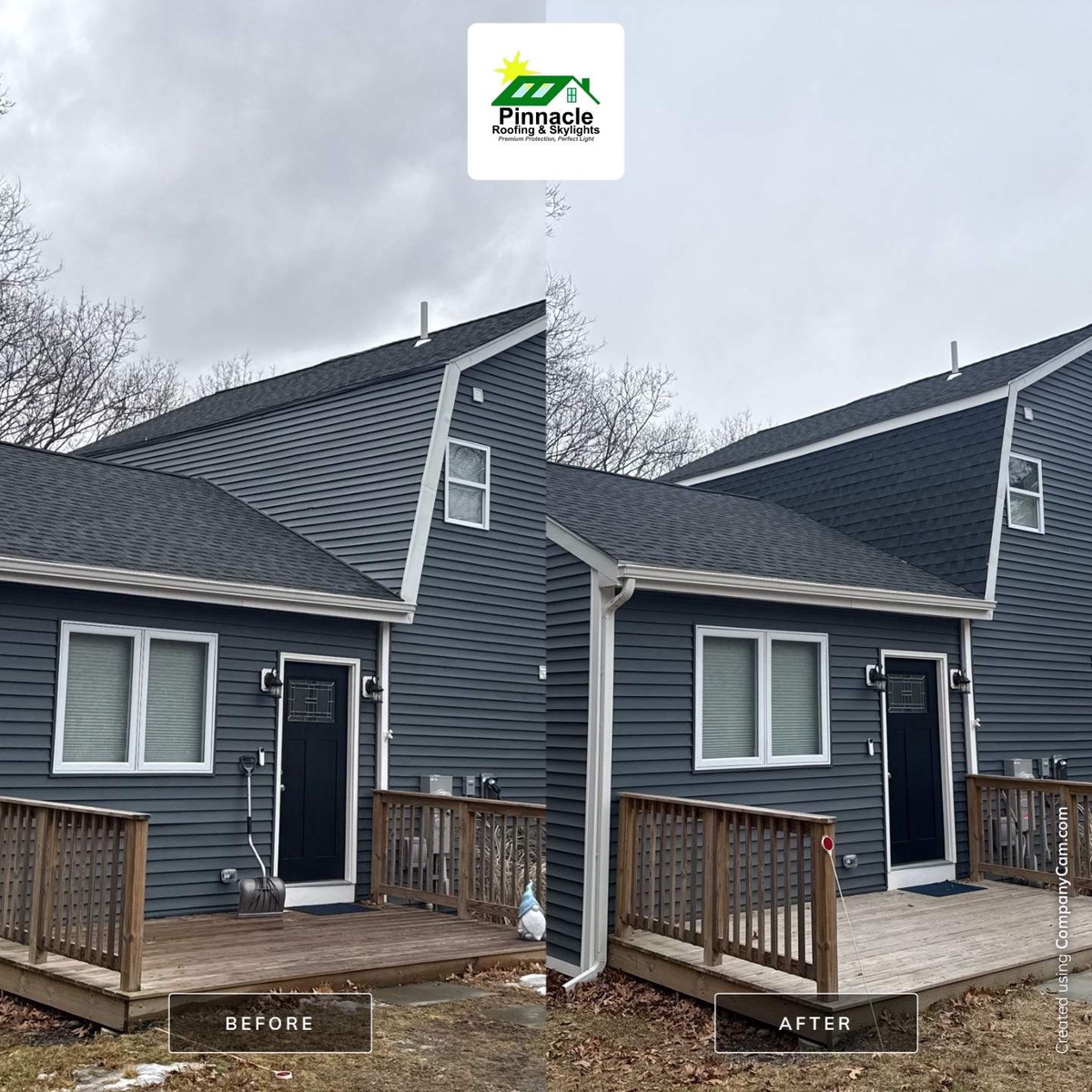

The Pinnacle crew began with a full tear-off of the problem area, removing every piece of vinyl siding that had been applied to the sloped surface of the addition. What they found underneath was exactly what you’d expect when water has been migrating through lap seams for years: stained sheathing, softened plywood, and early-stage rot — the kind of hidden damage that often requires emergency roof repair at the connection point where the addition framing met the original house. Multiple sheets of compromised plywood were pulled and replaced with fresh CDX sheathing to restore a solid, code-compliant nail base.

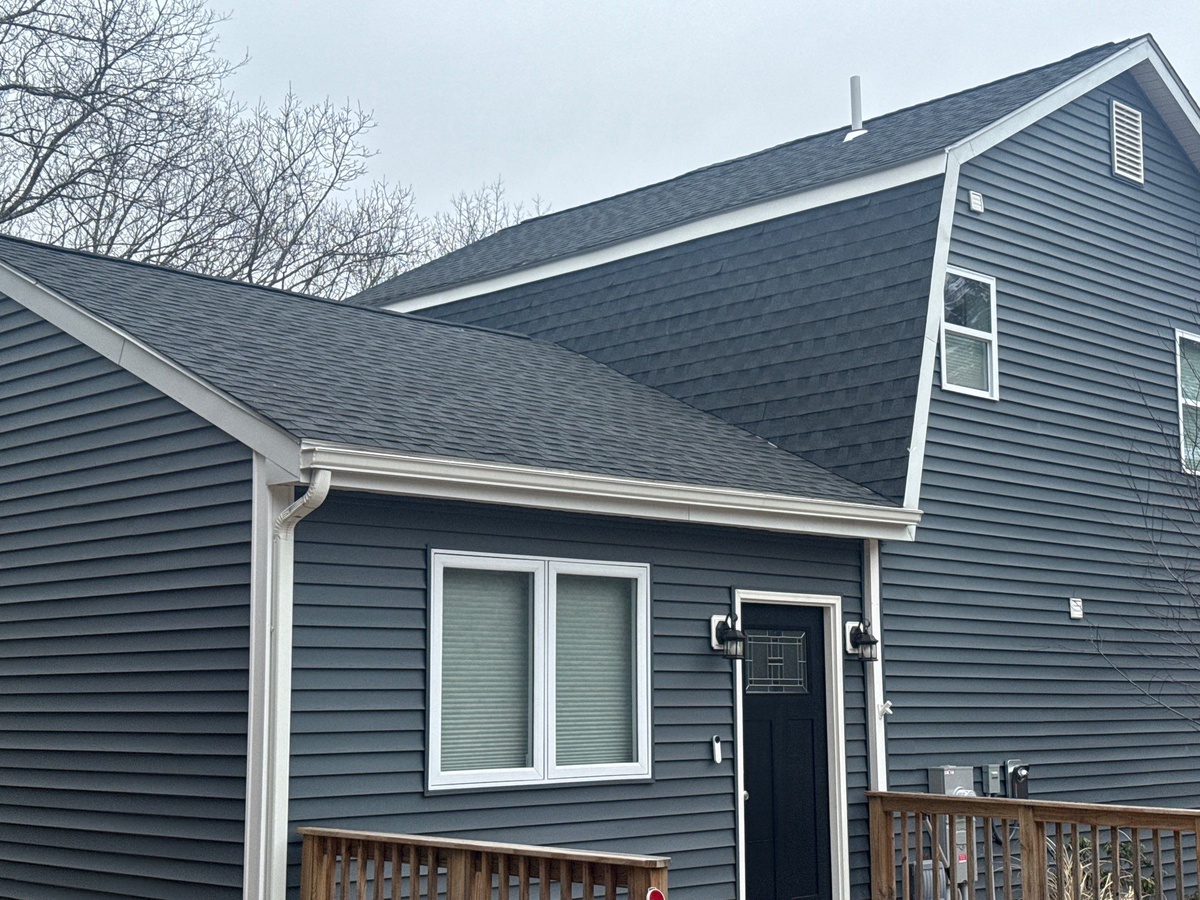

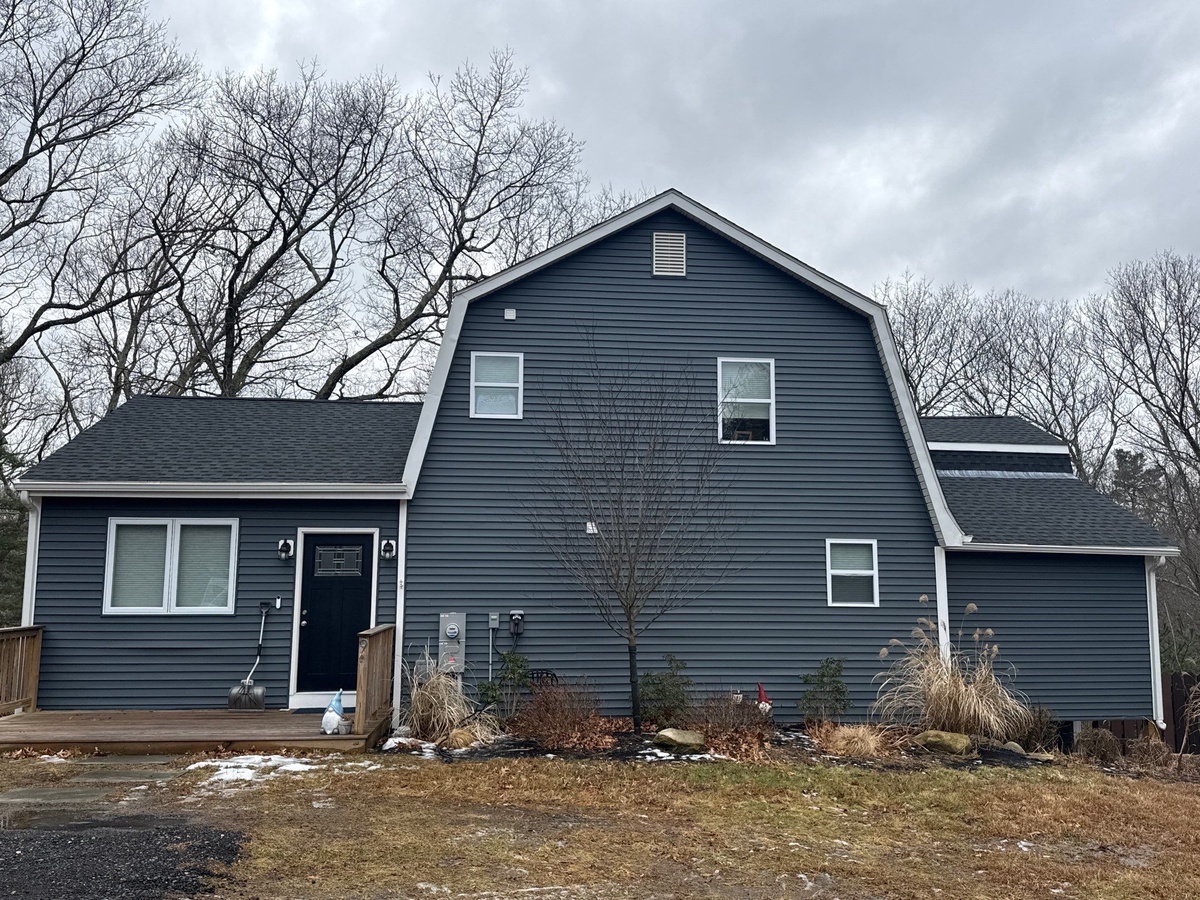

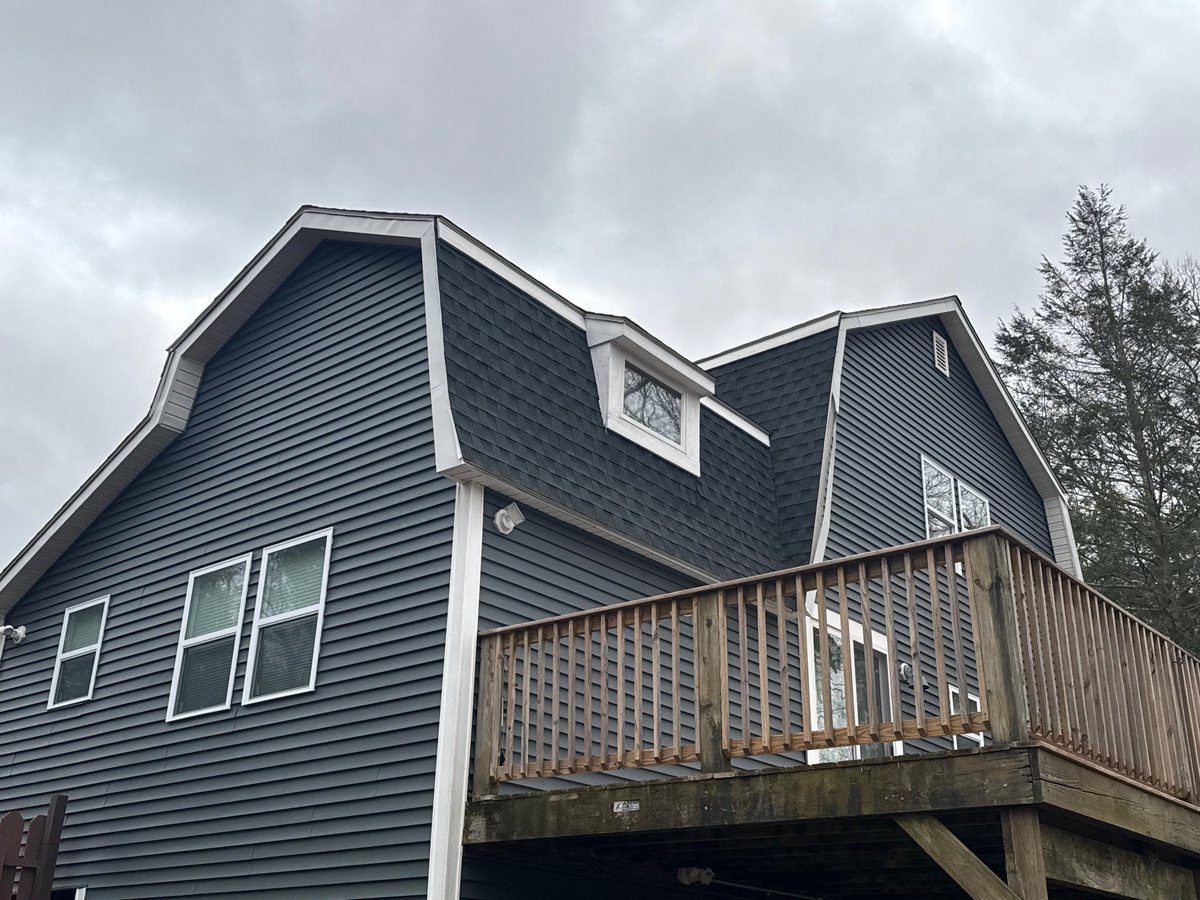

With the deck restored, the team installed a complete layer of Grace ice and water shield across the entire repaired slope — a critical step for any storm damage repair on complex geometry — not just at the eaves, but full coverage. On a mansard-profile roof where pitch changes create natural water collection points, standard underlayment coverage isn’t enough. Every transition was individually addressed: the pitch change from steep to shallow slope received custom-bent drip edge and PVC trim boards to create a clean, watertight handoff between roof planes. Step flashing at the sidewall junction was replaced with new aluminum step flashing woven into each shingle course.
What We Installed (And Why)

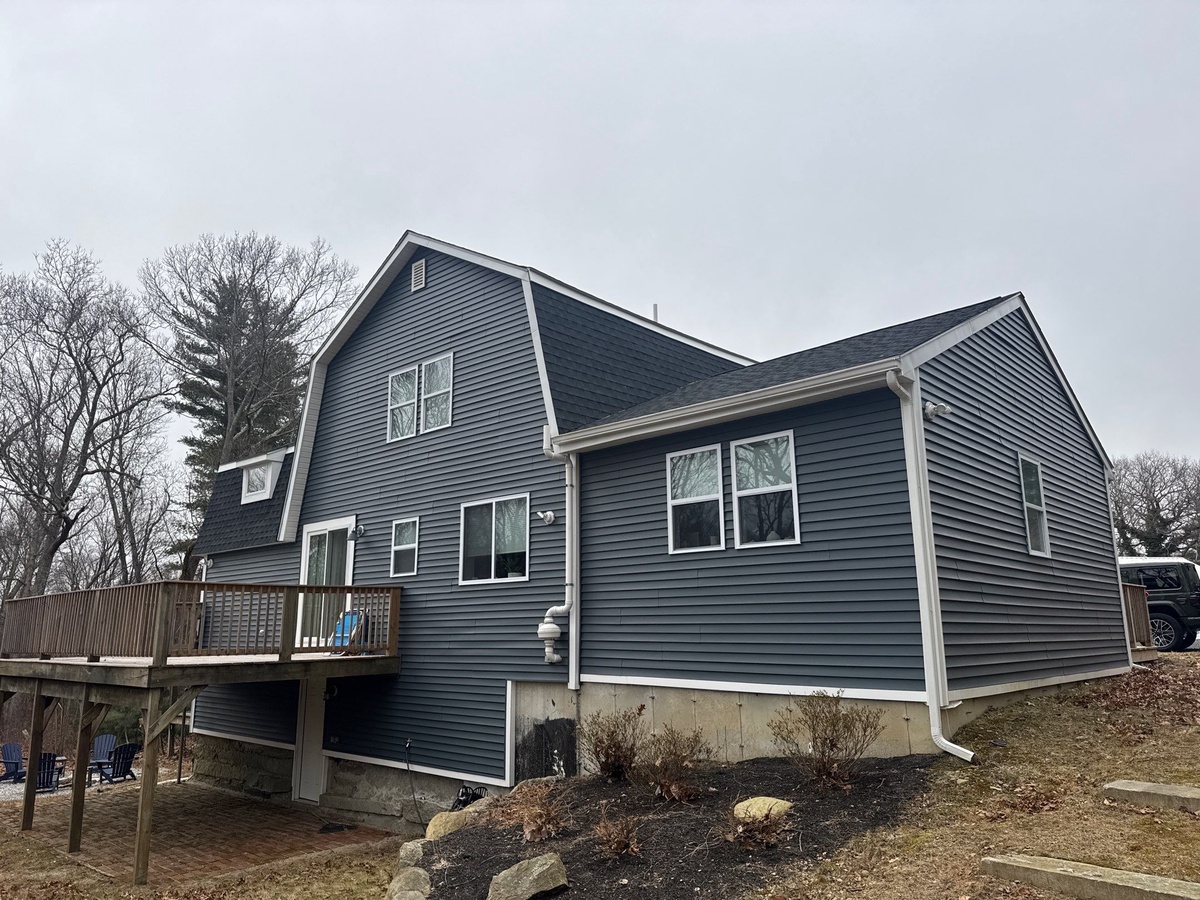

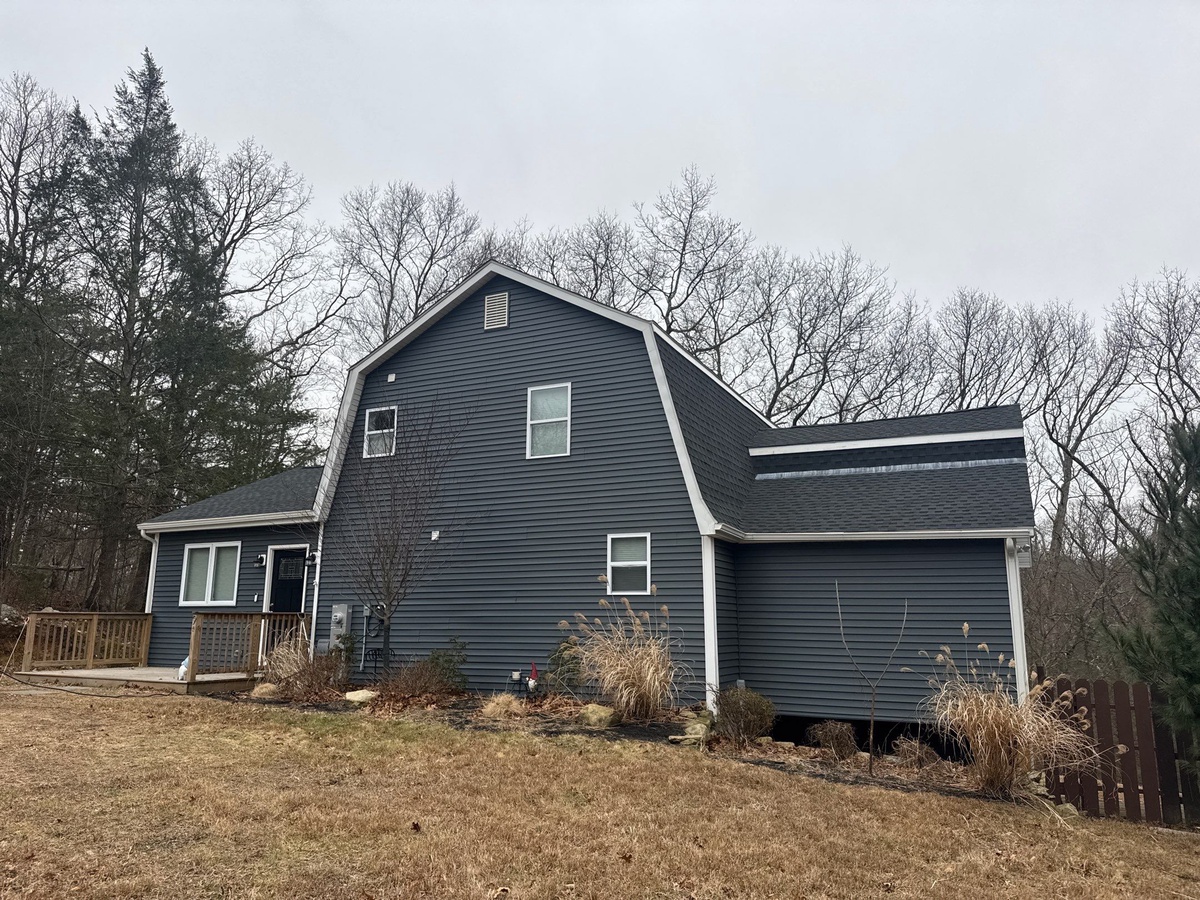

Pinnacle installed GAF Timberline HDZ shingles in Charcoal to match the existing roof. The Timberline HDZ was the right choice here for a specific reason beyond aesthetics: GAF’s LayerLock technology mechanically fuses the shingle layers together rather than relying on adhesive alone. On a mansard roof with steep lower slopes, wind uplift forces are amplified — LayerLock provides the mechanical bond that resists those forces even in Johnston’s summer thunderstorm gusts.

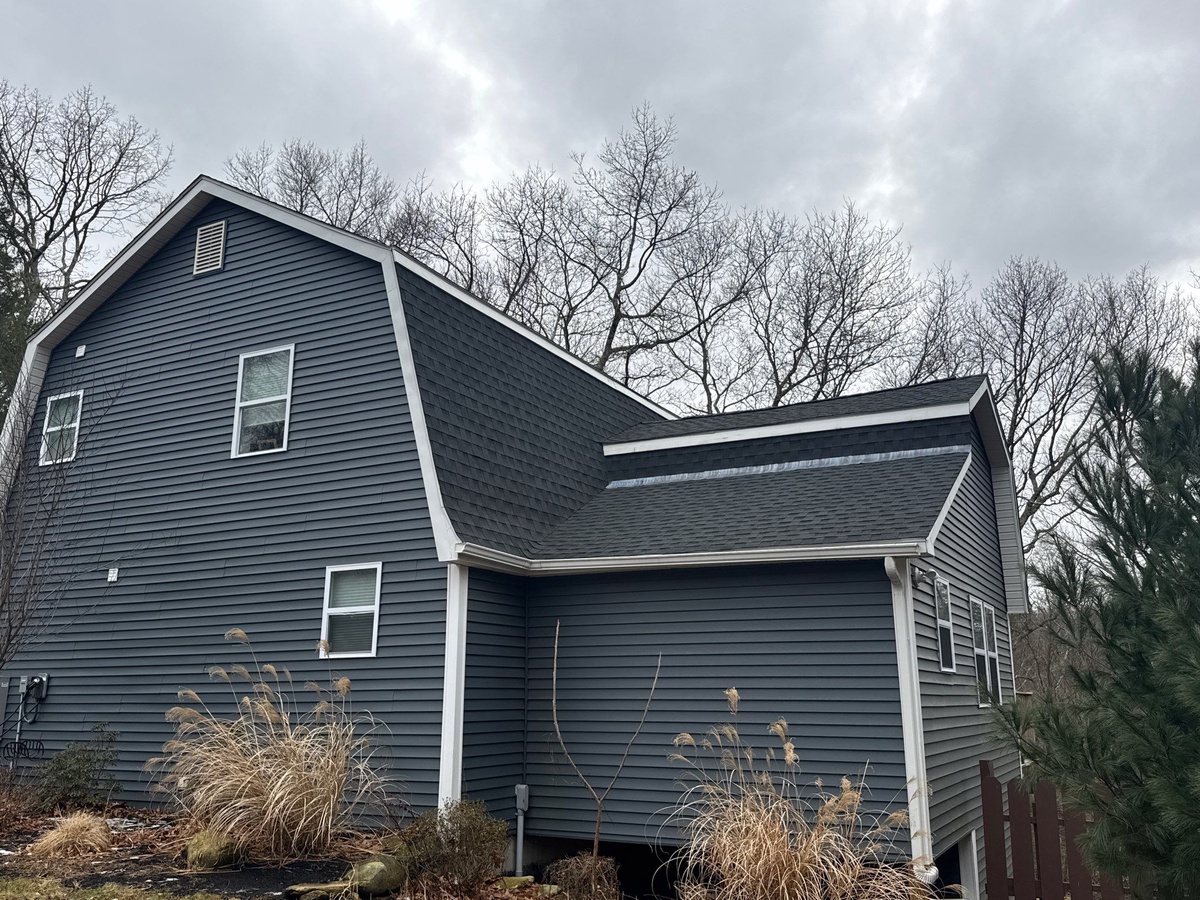

The HDZ line also features GAF’s StrikeZone nailing area, which is 630% larger than standard nailing zones. On a complex roof geometry with multiple pitch changes, this wider target area means every nail lands in the manufacturer’s specified zone — a detail that matters because nails placed outside the zone can void the WindProven warranty. GAF’s WindProven limited wind warranty is the only one in the industry with no maximum wind speed — a meaningful advantage for any Rhode Island home.
Good To Know
Here in Johnston — a town of tree-lined residential streets where homes range from modest ranches to multi-story colonials with additions — one of the most common roofing problems Pinnacle sees isn’t storm damage or old age. It’s material misapplication. Vinyl siding, in particular, gets used where it shouldn’t be. Siding is designed to hang vertically and shed water downward through overlapping courses. Tilt it to any angle — even a gentle slope — and rain migrates sideways through the laps, pooling against the wall sheathing behind it. The result is slow, hidden water damage that doesn’t show up until it’s a structural problem. If you see any siding material on a sloped section of your home, that’s a conversation worth having with a qualified roofer before the next heavy rain.
Why This Approach Works
Full-coverage ice and water shield on the repaired section means there’s a self-healing waterproof membrane under every shingle — even if wind-driven rain gets past the shingle surface, it hits a barrier that seals around every nail penetration. Combined with properly installed GAF HDZ shingles and PVC trim at the pitch transition, this roof will handle Johnston’s weather for decades, not years.
Why Pinnacle
Pinnacle Roofing holds an A+ rating with the Better Business Bureau and is a GAF-certified installer, which means the WindProven warranty — with no wind speed limit — is available on every HDZ installation. With a large crew and the experience to handle complex geometry like mansard roofs, Pinnacle delivers the kind of precision work that Johnston homeowners rely on when a previous contractor’s shortcuts need to be corrected.
Johnston, RI
From the established neighborhoods near Johnston’s Memorial Park to the quieter streets off Atwood Avenue, Pinnacle has been protecting homes across this community for years. If your roof needs attention — whether it’s an emergency repair or a planned replacement — we’re here to help. Give us a call for a free estimate.
